LEICA NA2 Automatic Level

Leica NA2 Automatic Level Technical Data:

Standard deviation for 1 km double-run
levelling, depending on type of staff and on procedure up to 0.7 mm
With parallel-plate micrometer 0.3 mm

Telescope erect image
Standard eyepiece 32×
FOK73 eyepiece (optional) 40×
FOK117 (optional) 25×
Clear objective aperture 45 mm
Field of view at 100 m 2.2 m
Shortest focusing distance 1.6 m
Multiplication factor 100
Additive constant 0
Working range of compensator ~30’
Setting accuracy of compensator (stand. dev.) 0.3“
Sensitivity of circular level 8’/2 mm
Glass circle (K version) 400 gon (360°)
Graduation diameter 70 mm
Graduation interval 1 gon (1°)
Reading by estimation to 10 mgon (1’)
Water- and dust resistance IP53

Temperature range:

Operation –20°C to +50°C (– 4°F to 122°F)
Storage –40°C to +70°C (–40°F to 158°F)Telescope

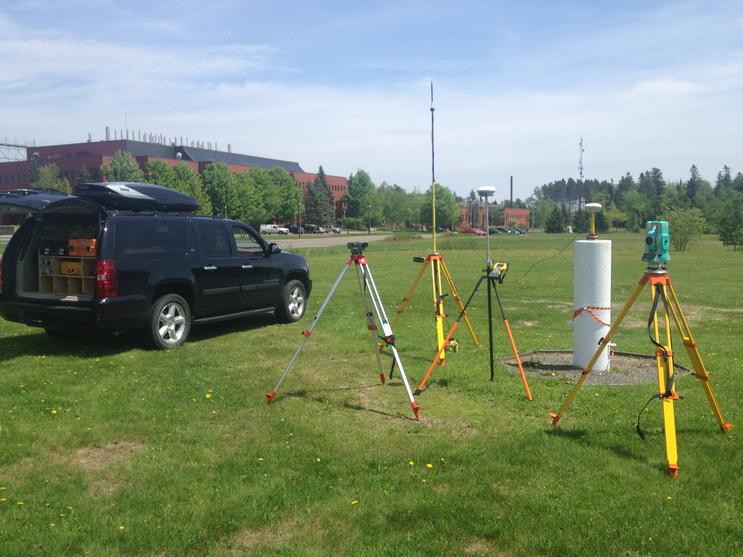

TECHNOLOGY & eQUIPMENT

Surveying. Drafting. Mapping.

TRIMBLE R8 Model 3 GNSS GPS RTK Base & Rover System

Trimble R8 Technical Data:

Measurements
• Trimble R-Track technology
• Advanced Trimble MaxwellTM Custom Survey GNSS Chip
• High precision multiple correlator for L1, L2, and L5 pseudorange measurements
• Unfiltered, unsmoothed pseudorange measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
• Very low noise L1, L2, and L5 carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
• L1, L2, and L5 Signal-to-Noise ratios reported in dB-Hz
• Proven Trimble low elevation tracking technology
• 48 Channels L1 C/A Code, L2C, L1/L2/L5 Full Cycle Carrier, WAAS/EGNOS support1

Code differential GPS positioning2
Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.25 m + 1 ppm RMS
Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.50 m + 1 ppm RMS
WAAS differential positioning accuracy3 . . . . . . . . typically <5 m 3DRMS

Static and FastStatic GPS surveying2
Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mm + 0.5 ppm RMS
Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5 mm + 1 ppm RMS

Kinematic surveying2
Horizontal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mm + 1 ppm RMS
Vertical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±20 mm + 1 ppm RMS
Initialization time . . . . . . . . . . . . . . . . . . . . . . . . . . . . typically <10 seconds
Initialization reliability4 . . . . . . . . . . . . . . . . . . . . . . . . . . .typically >99.9%

HARDWARE
Physical
Dimensions (W×H) . . . . . . . . . . . . . . . . .19 cm × 11.2 cm (7.5 in x 4.4 in),including connectors
Weight . . . . . . . . . 1.35 kg (2.97 lb) with internal battery, internal radio,standard UHF antenna. 3.71 kg (8.18 lb) entire RTK rover including
batteries, range pole, controller and bracket

Temperature5
Operating . . . . . . . . . . . . . . . . . . . . –40 °C to +65 °C (–40 °F to +149 °F)
Storage . . . . . . . . . . . . . . . . . . . . . . –40 °C to +75 °C (–40 °F to +167 °F)
Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100%, condensing
Waterproof . . . . . . . . . . . . IPX7 for submersion to depth of 1 m (3.28 ft)
Shock and vibration . . . . . . . . . . . . . . . . . Tested and meets the following environmental standards:
Shock . . . . . . . . Non-operating: Designed to survive a 2 m (6.6 ft) pole drop onto concrete. Operating: to 40 G, 10 msec, sawtooth
Vibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . MIL-STD-810F, FIG.514.5C-1

Electrical
• Power 11 to 28 V DC external power input with over-voltage protection on Port 1 (7-pin Lemo)
• Rechargeable, removable 7.4 V, 2.4 Ah Lithium-Ion battery in internal battery compartment. Power consumption is <3.1 W, in RTK mode
with internal radio. Operating times on internal battery:
– 450 MHz receive only option 5.3 hours, varies with temperature
– 450 MHz receive/transmit option 3.5 hours, varies with temperature and wireless data rate
– GSM/GPRS 3.8 hours, varies with temperature
• Certification Class B Part 15, 22, 24 FCC certification, 850/1900 MHz. Class 10 GSM/GPRS module. CE Mark approval, and C-tick approval

Communications and Data Storage
• 3-wire serial (7-pin Lemo) on Port 1. Full RS-232 serial on Port 2(Dsub 9 pin)
• Fully Integrated, fully sealed internal 450 MHz receiver/transmitter option:
– Transmit power: 0.5 W
– Range6 : 3–5 km typical / 10 km optimal
• Fully integrated, fully sealed internal GSM/GPRS option7
• Fully integrated, fully sealed 2.4 GHz communications port (Bluetooth®)7
• External GSM/GPRS, Cellphone and CDPD modem support for RTK and VRS operations
• Data storage on 11 MB internal memory: 302 hours of raw observables based on recording data from 6 satellites at 15 second intervals
• Data storage on controller with 128 MB memory: Over 3400 hours of raw observables based on recording data from 6 satellites at 15 second intervals
• 1 Hz, 2 Hz, 5 Hz, and 10 Hz positioning
• CMRII, CMR+, RTCM 2.1, RTCM 2.3, RTCM 3.0 Input and Output
• 16 NMEA outputs. GSOF and RT17 outputs. Supports BINEX and smoothed carrier

TRIMBLE R8 GNSS SYSTEM
1 The availability of L2C and the L5 signal is dependent on the US Government.
2 Accuracy and reliability may be subject to anomalies such as multipath, obstructions, satellite geometry,and atmospheric conditions. Always follow recommended survey practices.
3 Depends on WAAS/EGNOS system performance.
4 May be affected by atmospheric conditions, signal multipath, and satellite geometry. Initialization reliability is continuously monitored to ensure highest quality.
5 Receiver will operate normally to –40 °C, Bluetooth module and internal batteries are rated to –20 °C.
6 Varies with terrain and operating conditions.
7 Bluetooth and GSM type approvals are country specific. Contact your local Trimble authorized distribution partner for more information.
Specifications subject to change without notice

LEICA DISTO E7500I (Laser Distance Meter)

Leica Disto E7500I Technical Data:

Distance measuring                         yes
Min/Max measuring                         yes
Permanent measuring yes
Stake-out                                         yes
Addition/Subtraction yes
Area                                                 yes
Triangle area                                   yes
Volume                                             yes
Trapezium                                        yes
Painter function (area with yes
partial measurem.)
Pythagoras                                       2-point, 3-point
Smart Horizontal Mode / yes
Indirect height
Height-profile measurement yes
Inclination tracking yes
Sloped objects                                yes
Height tracking yes
Memory                                          30 displays
Beep                                               yes
Illuminated colour display yes
Multifunctional endpiece yes
pointfinder (Viewscreen) 4xZoom
Digital Level                                    yes
Bluetooth® Smart yes
Personalized Favorites                   yes
Timer                                              yes
Long Range Mode                          yes
Calculator                                        yes

Distance measurement
Typical Measuring Tolerance* ± 1.0 mm / ~1/16" ***
Maximum Measuring ± 2.0 mm / 0.08 in ***
Tolerance**
Typical Range* 200 m / 660 ft
Range at unfavourable 80 m / 260 ft
condition ****
Smallest unit displayed 0.1 mm / 1/32 in
Power Range Technology™       yes
Ø laser point   6 /30 / 60 mm
at distances   (10 / 50 / 100 m)

Tilt measurement
Measuring tolerance to laser beam***** ± 0.2°
Measuring tolerance to housing***** ± 0.2°

Range 360°

General
Laser class 2
Laser type 635 nm, < 1 mW
Protection class IP65 (dust tight and jet water protected)
Autom. laser switch off after 90 s
Autom. power switch-off after 180 s
Bluethooth® Smart Bluethooth v4.0
Battery durability (2 x AA) up to 5000 measure- ments
Dimension (H x D x W) 143 x 58 x 29 mm 5.6 x 2.28 x 1.14 in
Weight (with batteries) 198 g / 6.37 oz

Temperature range:
- Storage -25 to 70 °C / -13 to 158 °F
- Operation -10 to 50 °C / 14 to 122 °F

* applies for 100 % target reflectivity (white painted wall),low background illumination, 25 ºC
** applies for 10 to 100 % target reflectivity, high backgroundillumination, - 10 ºC to + 50 ºC
*** Tolerances apply from 0.05 m to 10 m with a confidencelevel of 95%. The maximum tolerance may deteriorate to0.1 mm/m between 10 m to 30 m, to 0.20 mm/m between 30 m to 100 m and to 0.30 mm/m for distances above 100 m
**** applies for 100 % target reflectivity, background illuminationof approximately 30'000 lux
***** after user calibration. Additional angle related deviationof +/- 0.01° per degree up to +/-45° in each quadrant.
Applies at room temperature. For the whole operatingtemperature range the maximum deviation increases by+/-0.1°.
For accurate indirect results, the use of a tripod is recommended. For accurate tilt measurements a transverse tilt should beavoided.

SOFTWARE

>AutoCAD Civil 3D 2014

> Carlson Civil Suite 2014

> Trimble Business Centre 2

> Adobe Acrobat X Pro

> Google Earth Pro

> Microsoft Word / Excel

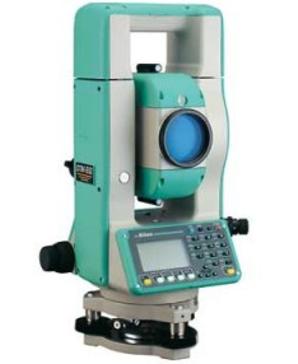

NIKON NPL 632 2” Reflectorless Total Station

Nikon NPL-632 Technical Data:

Telescope
Tube length 153 mm (6.02 in.)
Magnification 26×
Effective diameter of objective 40 mm (1.57 in.)

EDM 50 mm (1.97 in.)
Image Erect
Field of view 1°30' 2.6 m at 100 m (2.6 ft at 100 ft)
Resolving power 3.0''
Focusing distance 1.6 m to infinity (62.9 in. to infinity)
Reticle illumination 3-level variable

EDM
Measurement range with no haze, visibility over 40 km (25 miles)
Prism mode
Reflector sheet (5 cmx 5 cm) 300 m (984 ft)
Mini-prism 3,000 m (9,800 ft)
Standard prism (1 P) 5,000 m (16,400 ft)
Reflectorless mode
Reference target 210 m (700 ft)

DUAL AXIS TILT SENSOR
Method Liquid-electric detection
Compensation range ±3'
ANGLE MEASUREMENT
Reading system Photoelectric incremental encoder
Diametrical detection for H/V circles
Circle diameter (reading) 88 mm (3.46 in.) (79 mm (3.11 in.))
Minimum display increment 360° 1'' / 5" / 10'' 400G 0.2 mgon / 1 mgon / 2 mgon MIL6400 0.0005 MIL / 0.02 MIL / 0.05 MIL
DIN18723 accuracy 2"/0.5 mgon

PRECISION
Precise mode
Prism ± (3 + 2 ppm x D) mm1 at -10 °C through +40 °C
(+14 °F through +104 °F)
± (3 + 3 ppm x D) mm1 at -20 °C through -10 °C; +40 °C through +50        (-4 °F through +14 °F; +104 °F through122 °F)

1These precisions apply to measurements of 5 m(16 ft) or more to a reflector sheet and 10 m(33 ft) or more
to a mini or standard prism. For measurements at shorter distances than these, the precision is ± 5 mm.

Reflectorless ± (5 + 2 ppm x D) mm at -10 °C through +40 °C
(+14 °F through +104 °F)
± (5 + 3 ppm x D) mm at -20 °C through -10 °C; +40 °C through +50        (-4 °F through +14 °F; +104 °F through 122 °F)
Normal mode
Prism ± (10 + 5 ppm x D) mm
Reflectorless ± (10 + 5 ppm x D) mm

MEASUREMENT INTERVALS
Precise mode 1.3 sec. (initial 2 sec.)
Normal mode 0.5 sec. (initial 1.6 sec.)
Least count
Precise mode 0.1 mm (0.0005 ft.), switchable to 1 mm (0.002 ft)
Normal mode   1 mm (0.002 ft), switchable to 10 mm (0.02 ft)
Prism offset correction –999 mm to +999 mm (1 mm step)

ENVIRONMENTAL PERFORMANCE
Operating temperature range –20 °C through +50 °C (–4 °F through +122 °F)

Storage temperature range –25 °C through +60 °C (–13 °F through +140 °F)PERFORMANCE SPECIFICATIONS
